CATL battery
Hepu motor
Thermal management system
Zero emission
Low noise
ISO/SAE control switch
Floating bulldozer blade
Specifications

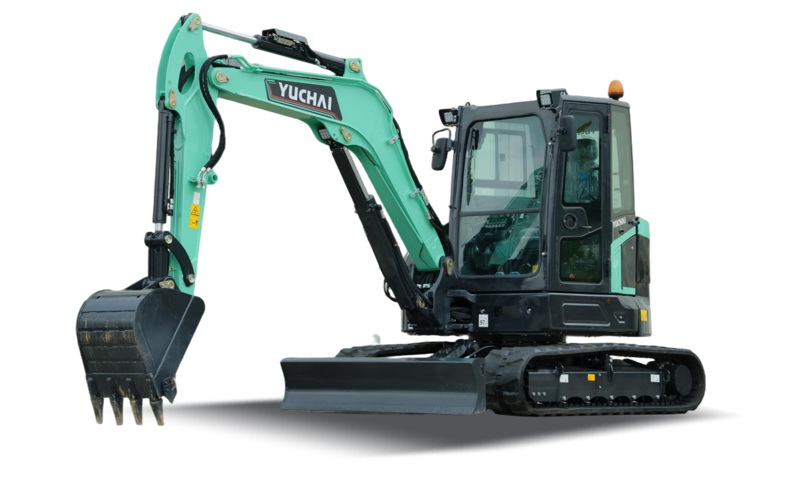

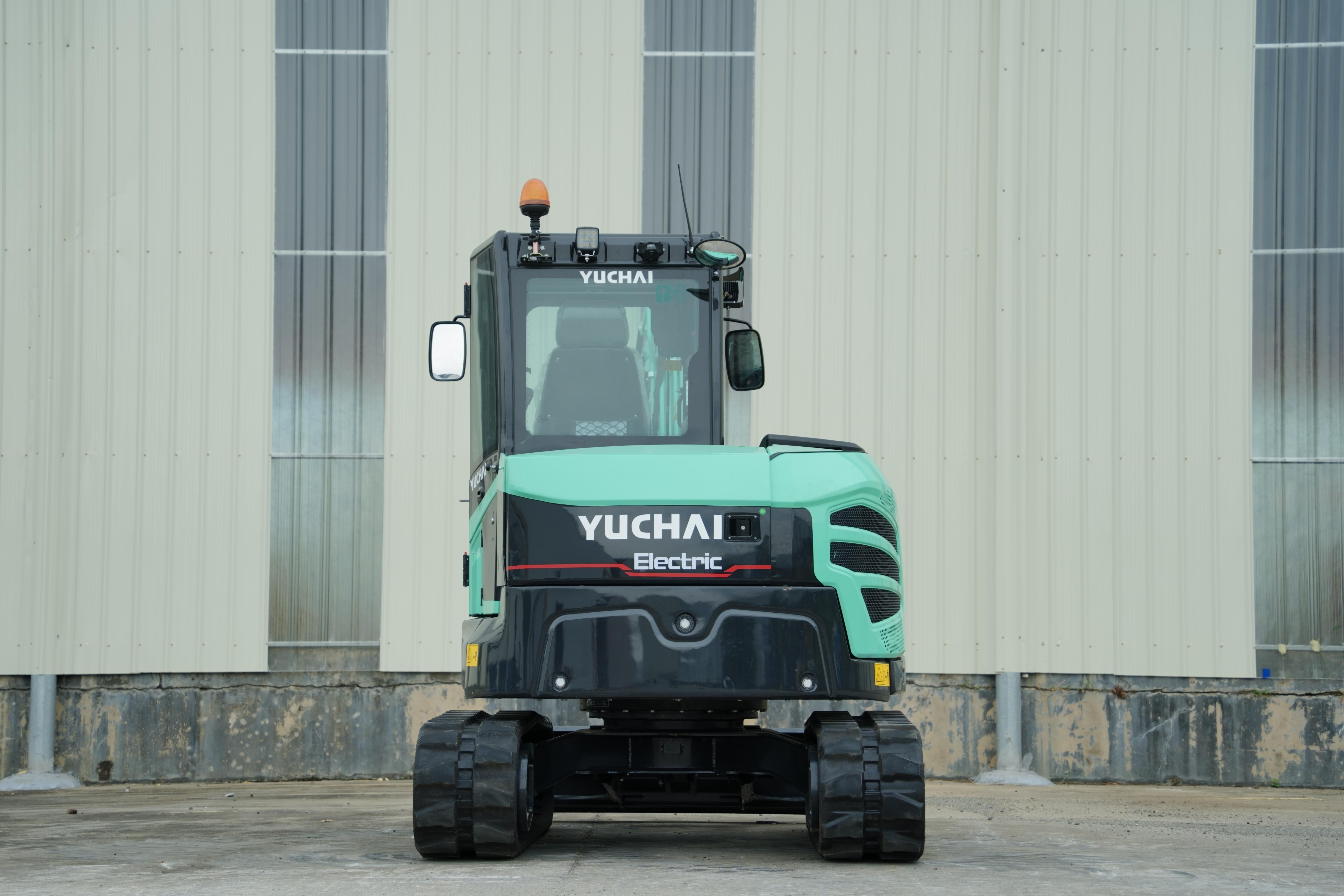

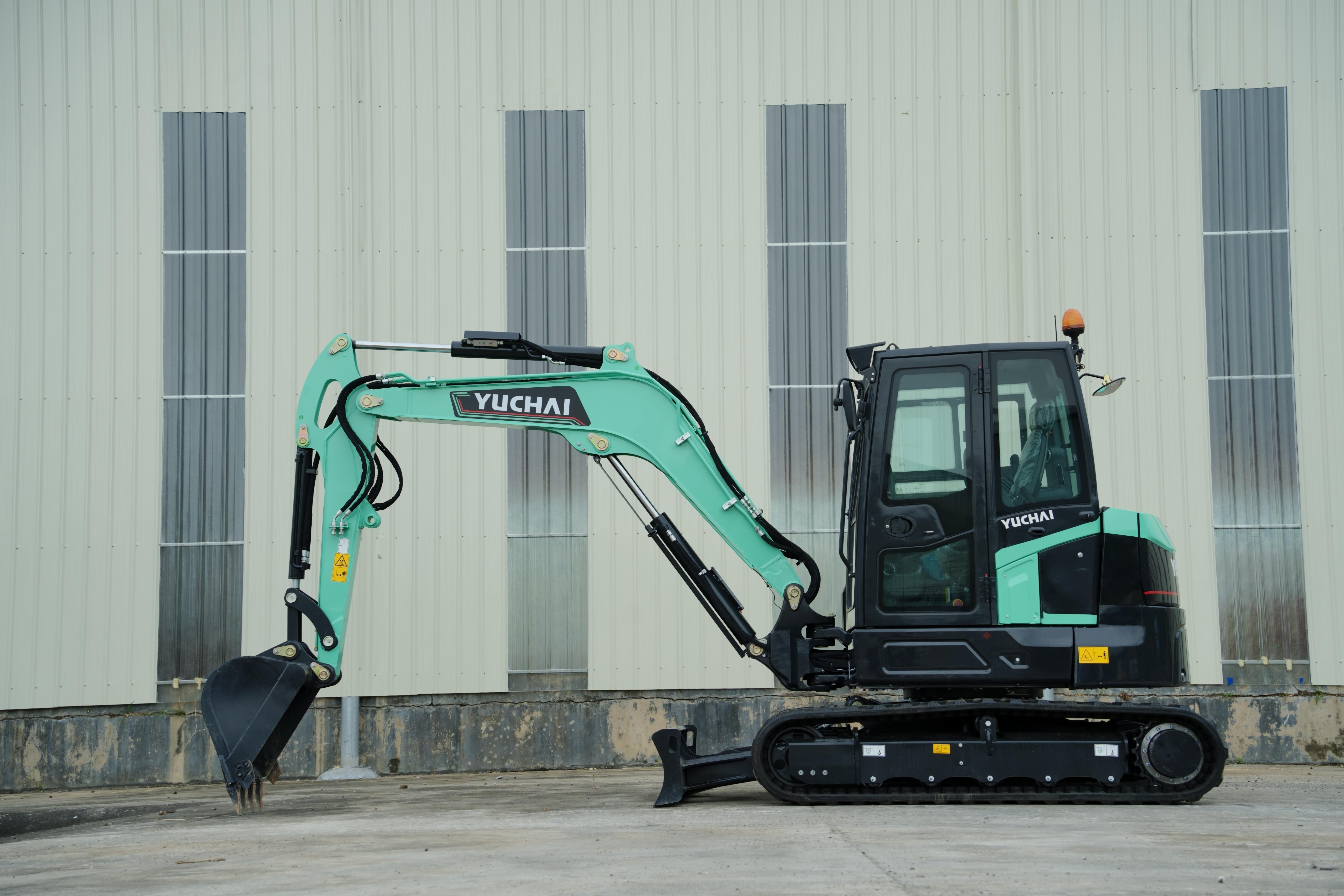

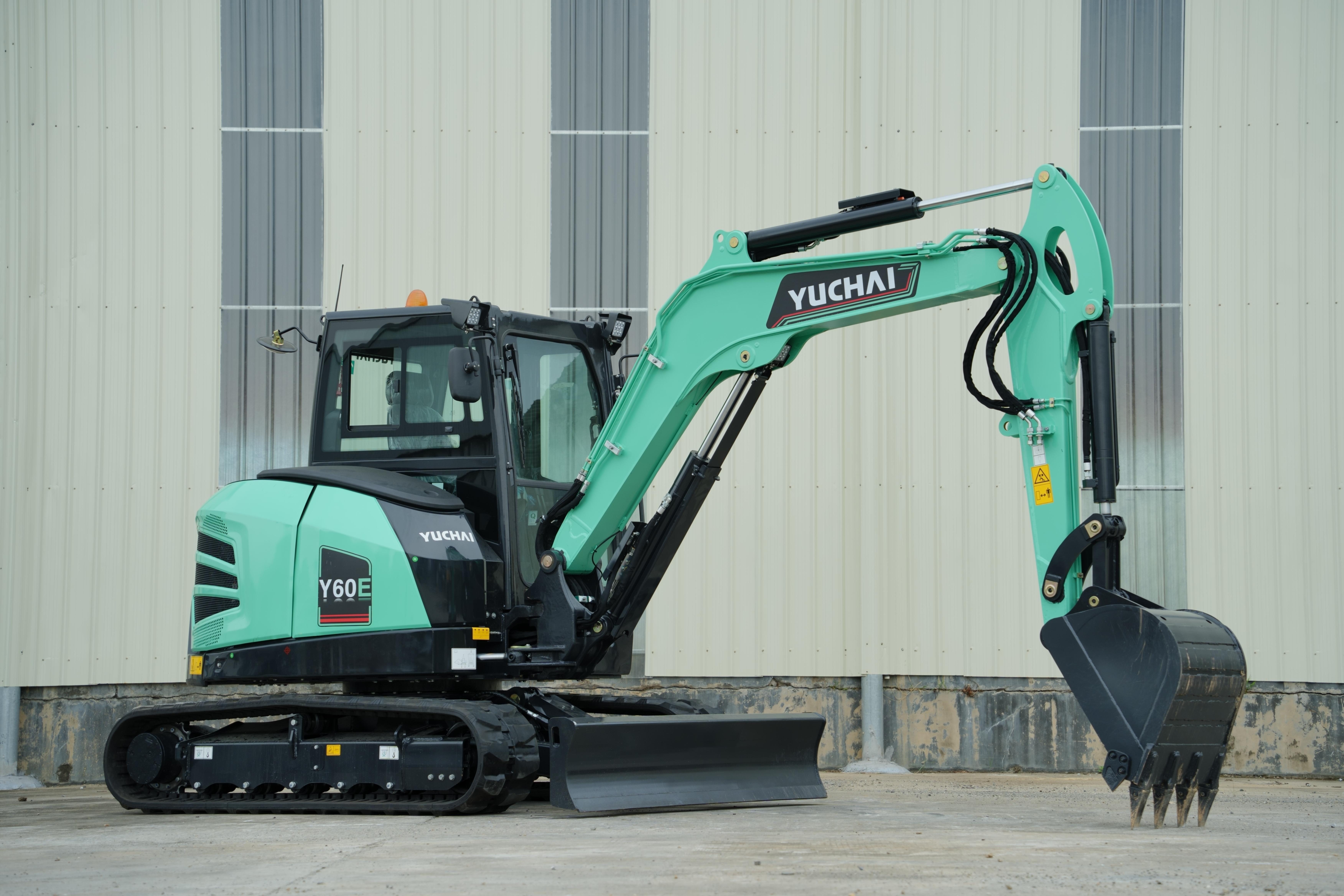

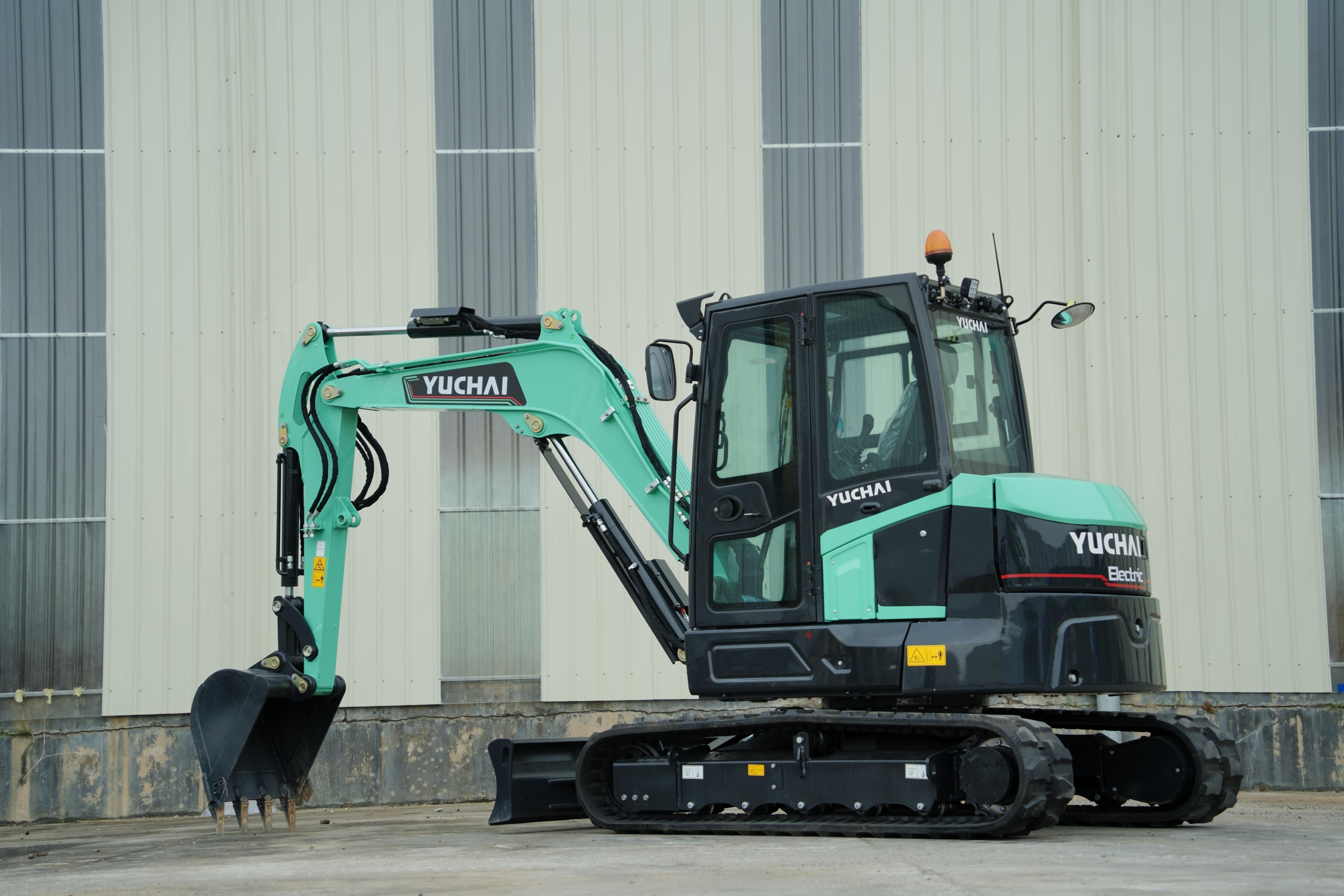

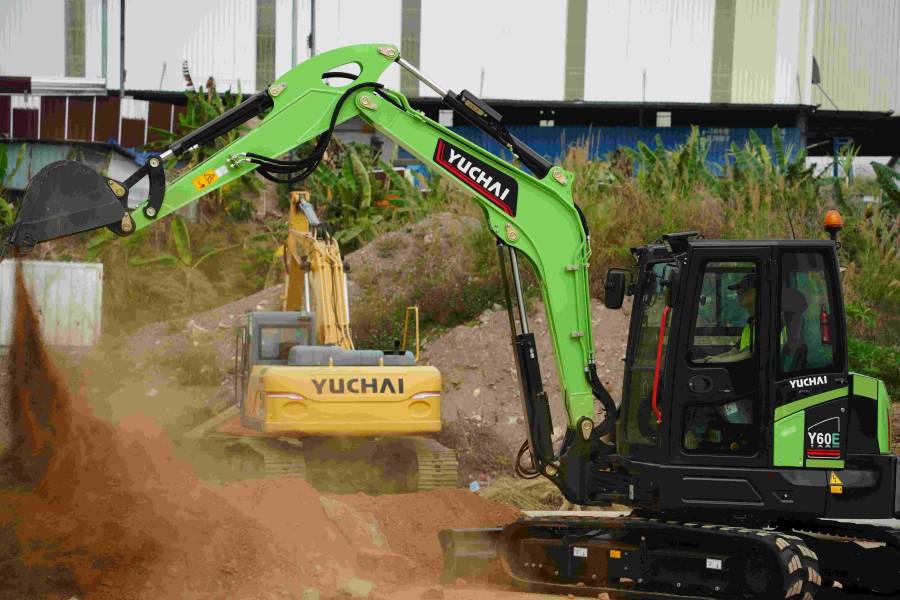

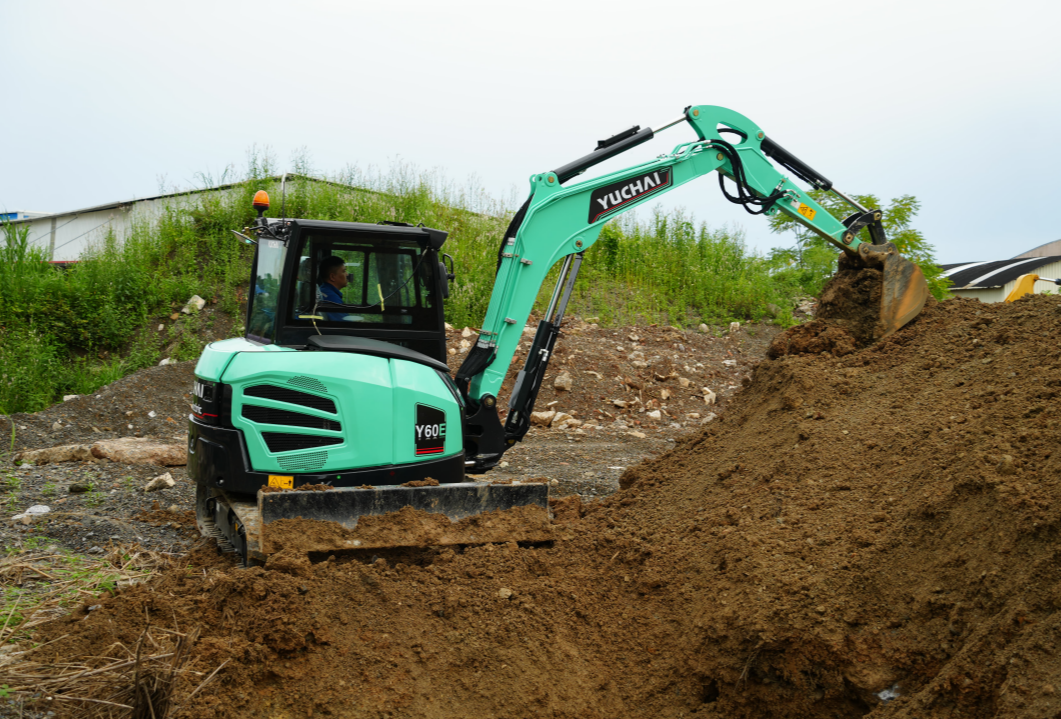

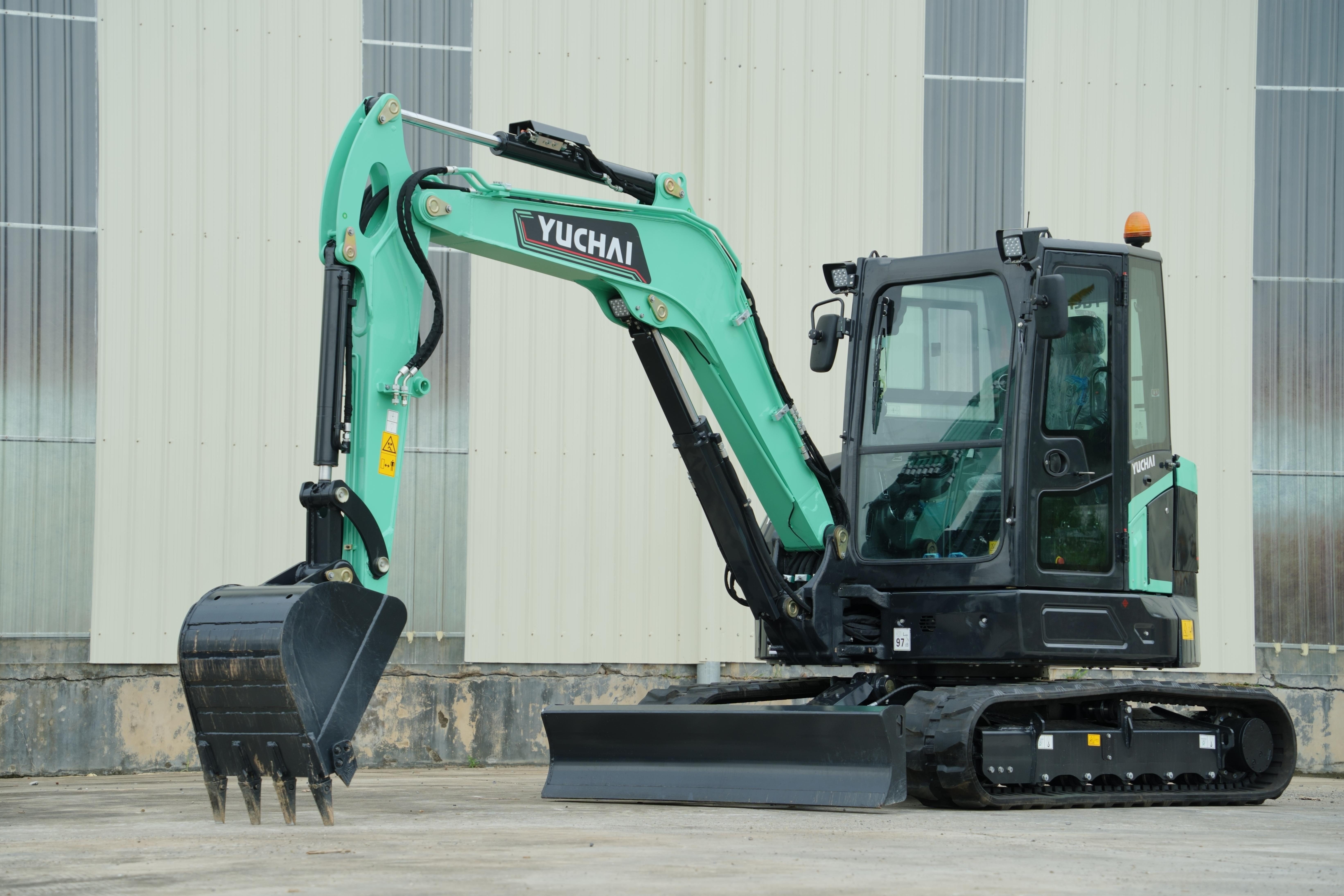

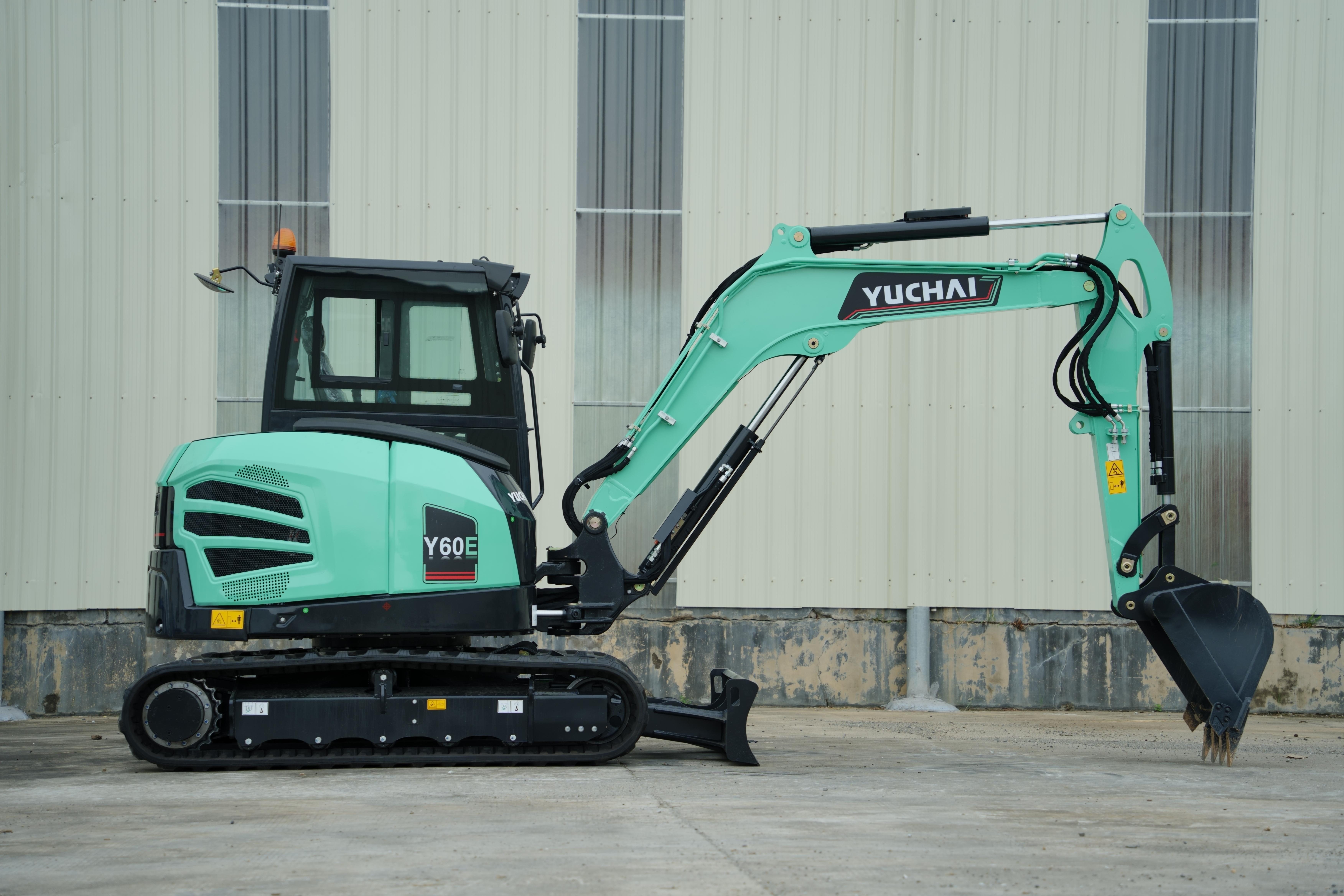

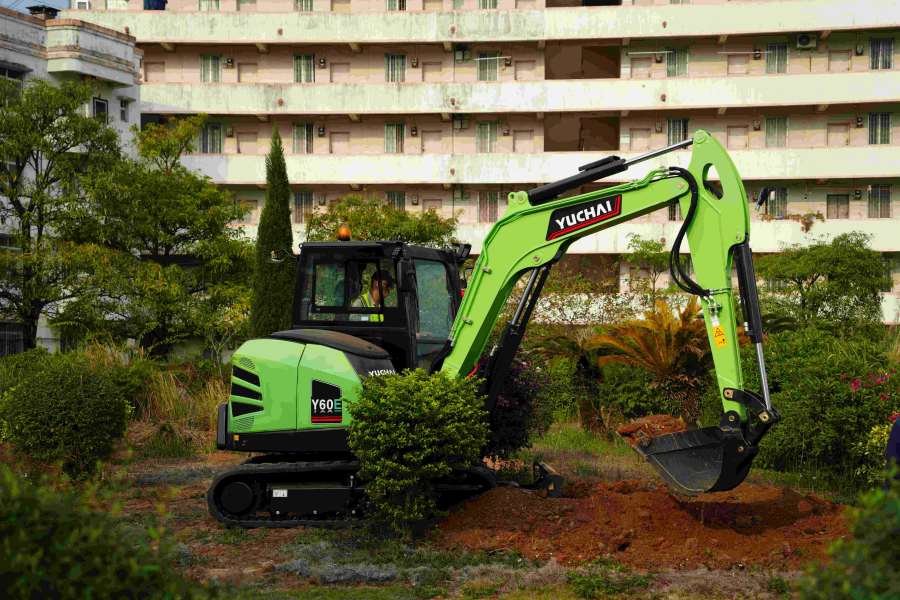

Yuchai Y60E Electric Excavator (CE ERD Certified) – Equipped with lithium iron battery for fast charging & long endurance, robust structure adapts to global job sites, FOPS/TOPS safety cabin, supports multiple attachments. Stable performance via advanced control systems.
| Basic parameters | ||
| Machine weight | kg | 5950 |
| Bucket capacity | m³ | 0.18 |
| Width of bucket | mm | 700 |
| Performance parameters | ||
| Battery Lithium Iron | kWh | 105 |
| Battery voltage | V | 347.76 |
| Motor power | kW | 32 |
| Standard endurance | h | 6~8 |

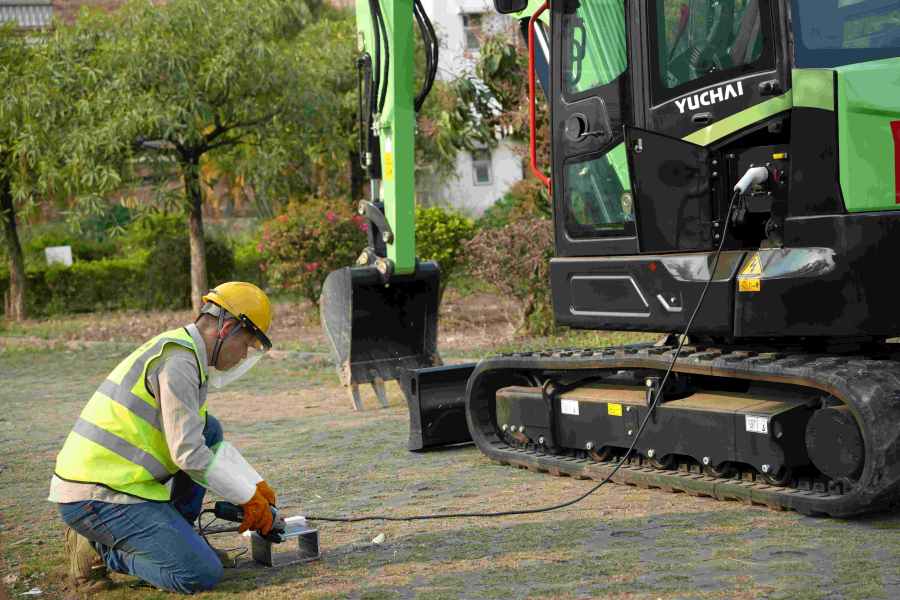

| Fast charging time | 1 hour | 20%→80% |
| Slow charging time | 9.5 hours | 20%→80% |
| Max. gradeability | ° | 35 |
| Max. digging force of bucket | kN | 45 |
| Max. digging force of arm | kN | 26 |
| Traveling speed | km/h | 3.6/2.2 |
| Max. hauling force | kN | 61.5 |
| Slewing speed of platform | rpm | 8~10 |
| Operating parameters | ||
| Max. digging height | mm | 5670 |
| Max. digging depth | mm | 3635 |
| Max. digging radius | mm | 6190 |
| Max. digging radius on ground level | mm | 6055 |
| Max. dumping height | mm | 4015 |
| Min. slewing radius | mm | 2550 |
| Max. vertical digging depth | mm | 2985 |
| Transportation dimension | ||
| Overall length | mm | 5545 |
| Overall width | mm | 1960 |
| Overall height | mm | 2550 |
| Other parameters | ||
| Width of undercarriage | mm | 1960 |
| Length of track | mm | 2500 |
| Width of track | mm | 400 |
| Minimum ground clearance | mm | 310 |
| Height between platform and ground | mm | 625 |
| Platform tail turning radius | mm | 1210 |
| Track gauge | mm | 1560 |
| Hydraulic oil tank capacity | L | 70 |
| working pressure | MPa | 27.5 |
| Flow rate | L/min | 158.4 |
| AUX 1 Pressure / Flow rate | MPa / L/min | 27.5 / 35 |
| AUX 2 Pressure / Flow rate | MPa / L/min | 27.5 / 110 |
| Boom length | mm | 2795 |
| Arm length （standard/longer） | mm | 1635 |
| Maximum Bulldozer Lift | mm | 440 |
| Steering head angle | 70°(L)/53°(R) | 70°(L)/53°(R) |
