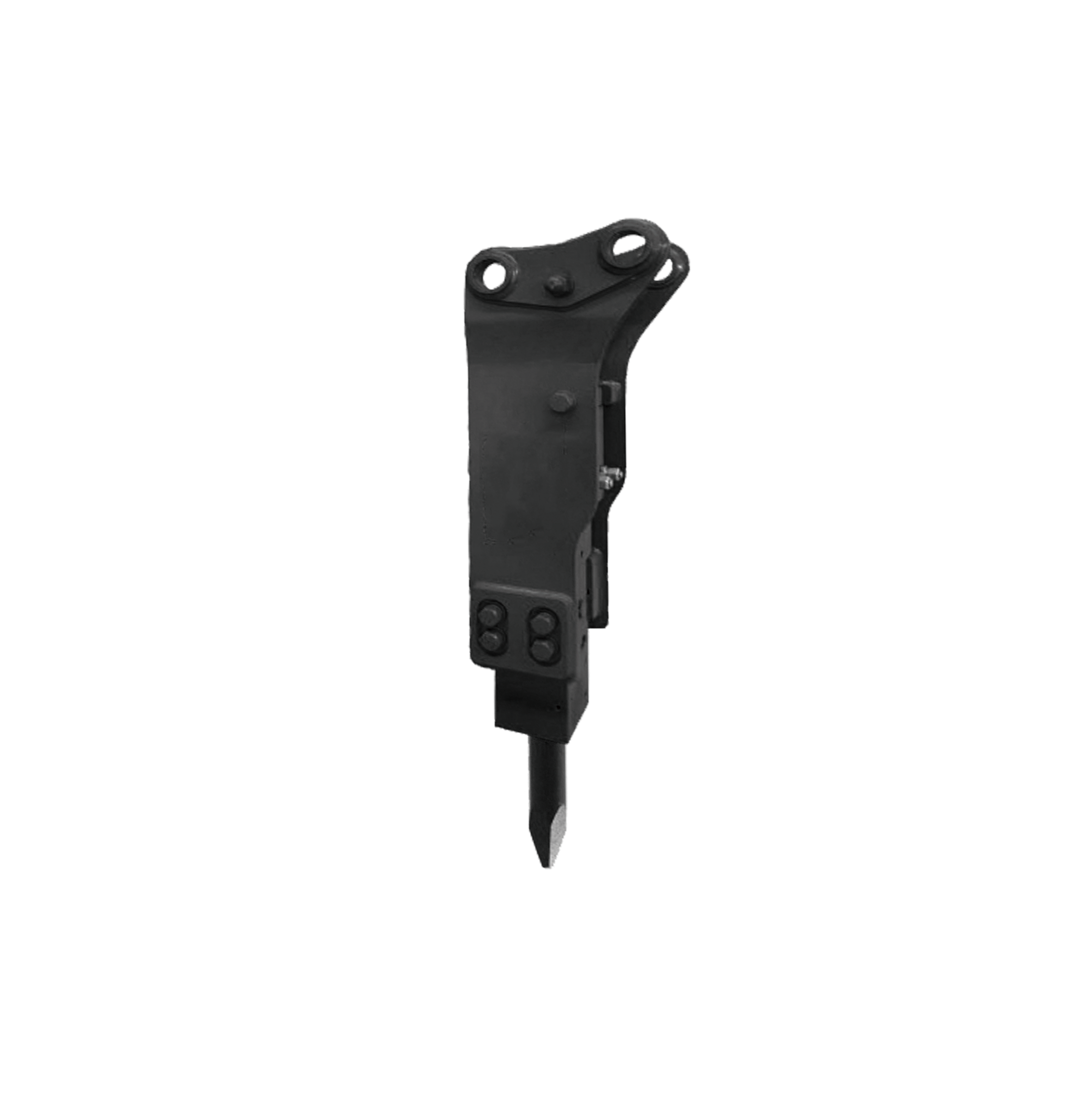

Top Type Hydraulic Breaker

high quality, high impact and high hit frequency

With the higher restriction of blasting control, hydraulic breaker is widely utilized for demolishing construction and destroying material.

Specific Types:

1.Triangle shape: specifically designed for demolition, with a wear-resistant side plate at the front and a sawtooth plate at the bottom tocrush reinforcedconcrete and facilitate the removal of steel bars.

2. Tower shape: specially designed for metallurgical steel plants,using a unique heat insulation process to improve efficiency andproduct lifespan.

3. Silent type: environmentally friendly, fully enclosed casing withshock-absorbing pads to effectively reduce noise pollution.

Based on different application and purpose, you could select different top type hydraulic hammer to meet with demands. Please feel free to contact with us to get more information about hydraulic breakers.


Specifications

ItemUnitYCB45YCB53YCB68YCB75YCB85YCB100YCB140YCB150YCB155YCB165YCB175YCB185YCB190YCB195YCB210
Weightkg/lb100 / 220.5120 / 264.6390 / 859.8421 / 928.1577 / 1272.1973 / 2145.11989 / 4385.02420 / 5335.22950 / 6503.63160 / 6966.64210 / 9281.54720 / 10405.84910 / 10824.75110 / 11265.66100 / 13448.2
Lengthmm/ft'in"1100 / 3'7.3"1100 / 3'7.3"1347 / 4'5.0"1528 / 5'0.2"1920 / 6'3.6"2260 / 7'5.0"2810 / 9'2.6"2895 / 9'6.0"3152 / 10'4.1"3310 / 10'10.3"3400 / 11'1.9"3400 / 11'1.9"3420 / 11'2.6"3440 / 11'3.4"3700 / 12'1.7"
Pressurekg/c㎡ / psi90-120 / 1280.1-1706.890-120 / 1280.1-1706.8110-140 / 1564.6-1991.3110-160 / 1564.6-2275.7120-170 / 1706.8-2418.0150-170 / 2133.5-2418.0160-180 / 2275.7-2560.2160-180 / 2275.7-2560.2160-180 / 2275.7-2560.2160-180 / 2275.7-2560.2160-180 / 2275.7-2560.2180-220 / 2560.2-3129.1180-220 / 2560.2-3129.1180-220 / 2560.2-3129.1190-230 / 2702.4-3271.4
FlowL/min / gpm15-25 / 4.0-6.615-25 / 4.0-6.625-45 / 6.6-11.930-45 / 7.9-11.945-85 / 11.9-22.580-120 / 21.1-31.7130-170 / 34.3-44.9150-190 / 39.6-50.2170-220 / 44.9-58.1200-300 / 52.8-79.3210-290 / 55.5-76.6220-300 / 58.1-79.3230-320 / 60.8-84.5230-320 / 60.8-84.5360-450 / 95.1-118.9
Ratebmp700-1200700-1200500-900500-800400-700400-700400-600350-500250-400250-350200-350200-250180-200180-200120-200
Hoseinch1/21/21/21/23/43/41111.251.251.251.251.251.25
Chiselmm/ft'in"45 / 0'1.8"53 / 0'2.1"68/70 / 0'2.7"/0'2.8"75 / 0'3.0"85 / 0'3.3"100 / 0'3.9"140 / 0'5.5"150 / 0'5.9"155 / 0'6.1"165 / 0'6.5"175 / 0'6.9"185 / 0'7.3"190 / 0'7.5"195 / 0'7.7"210 / 0'8.3"
Suitton1.2-3.01.2-3.03.0-5.54.0-7.07.0-1411-1619-2627-3828-4036-4540-5550-6055-6555-7065-100
