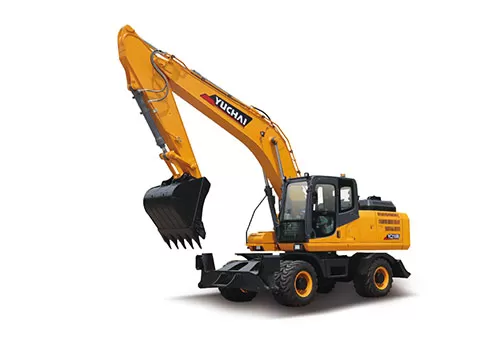

YC210W excavator is a new generation of fll hydraulic whee! excavator independently developed by YUCHAl heavy industryIt adopts high-power and low fud consmption engine to ensure the strong power and power reserve of the whole machineThe precise matching of high-fficiency hydraulic system and bridge box ensures the random switching of working state andwalking state; The hydraulic system of the whole machine is matched with imported hydraulic components, which has thecharacteristics of high relability, genuine goods, safety and environmental protection, comfort and convenience . At the same time it can provide a variety ofspecial configurations, which can meet the needs of diferent countries and customers.
Specifications
| Weight | ||
| Machine weight | kg | 21450 |
| Engine | ||
| Engine model | YC6J140 | |
| power | HP | 140/180 |
| Describe | Unit | Size |
| Shipping length | mm | 9700 |
| Total height during transportation | mm | 3340 |
| Overall width | mm | 2730 |
| Tail turning radius | mm | 2500 |
| Wheelbase | mm | 2840 |
| Track width | mm | 1980 |
| Turntable ground clearance | mm | 1240 |
| Ground clearance of rear axle | mm | 340 |
| Fuel tank capacity | L | 350 |
| ydraulic tank capacity | L | 215 |
| Describe | Unit | Numerical value |
| Maximum excavation radius | mm | 9900 |
| Maximum excavation heigh | mm | 10600 |
| Maximum excavation depth | mm | 6400 |
| Maximum unloading height | mm | 7700 |
| Bucket digging force | kN | 152.1 |
| Stick digging force | kN | 119.5 |
| Bucket capacity | m³ | 0.9 |
| Walking speed | km/h | 30 |
| Hydraulic system flow | L/min | 2*239 |
| Climbing ability | 70% |
