Yuchai Excavators – Crawler, Wheeled, Diesel and Electric Models
Yuchai Equipment Technology manufactures excavators for construction contractors, equipment distributors, rental companies and infrastructure projects. Our excavator range includes mini excavators, compact excavators, small and large hydraulic excavators, battery-electric models and wheeled excavators. The current product catalog includes machines from the 1,050 kg U10 mini excavator to the 51,000 kg YC550 large excavator.
Buyers can select Yuchai excavators according to operating weight, bucket capacity, digging requirements, working space, power source and transportation conditions. We also provide excavator attachments, replacement parts and OEM/ODM services for customers with specific equipment or distribution requirements.
Compare the excavator categories and representative models below, or contact Yuchai with your project requirements to identify a suitable configuration and request a quotation.
Yuchai Excavator Product Range
Yuchai offers several excavator weight classes for different construction and earthmoving requirements. The following table summarizes the existing product categories and representative models to help buyers narrow their selection before reviewing individual specifications.
| Excavator Category | Representative Models | Listed Operating Weight | Typical Applications |
|---|---|---|---|

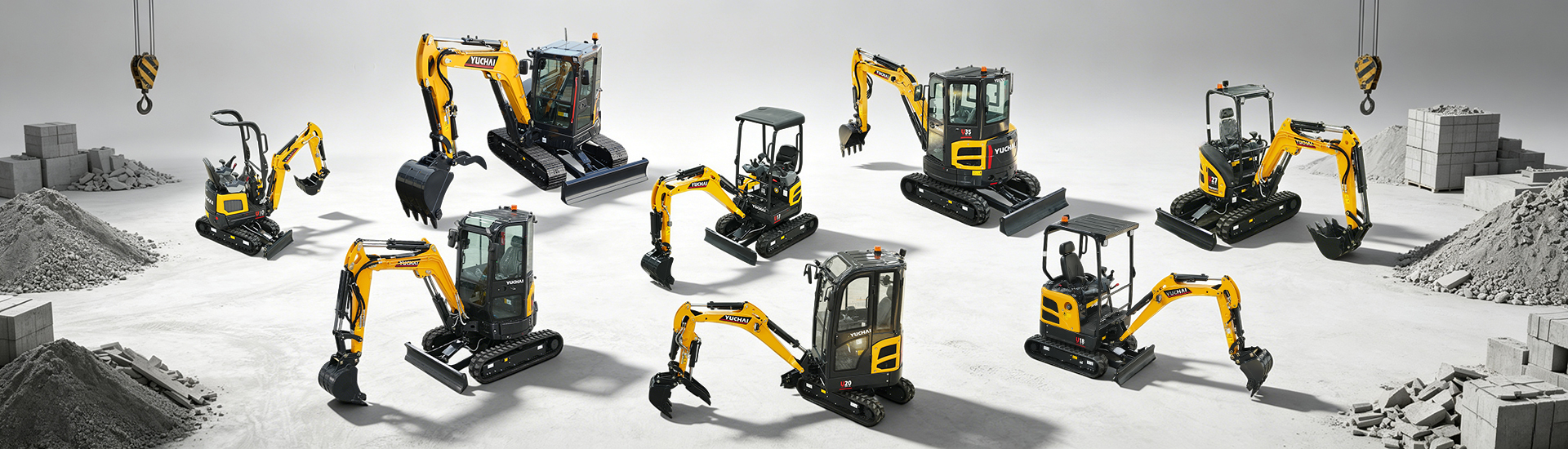

| Mini Excavators | U10, U17, U18, U20, Y20E, U27 | Approximately 1–2.7 tons, depending on model and configuration | Landscaping, residential construction, utility trenching and restricted-access projects |

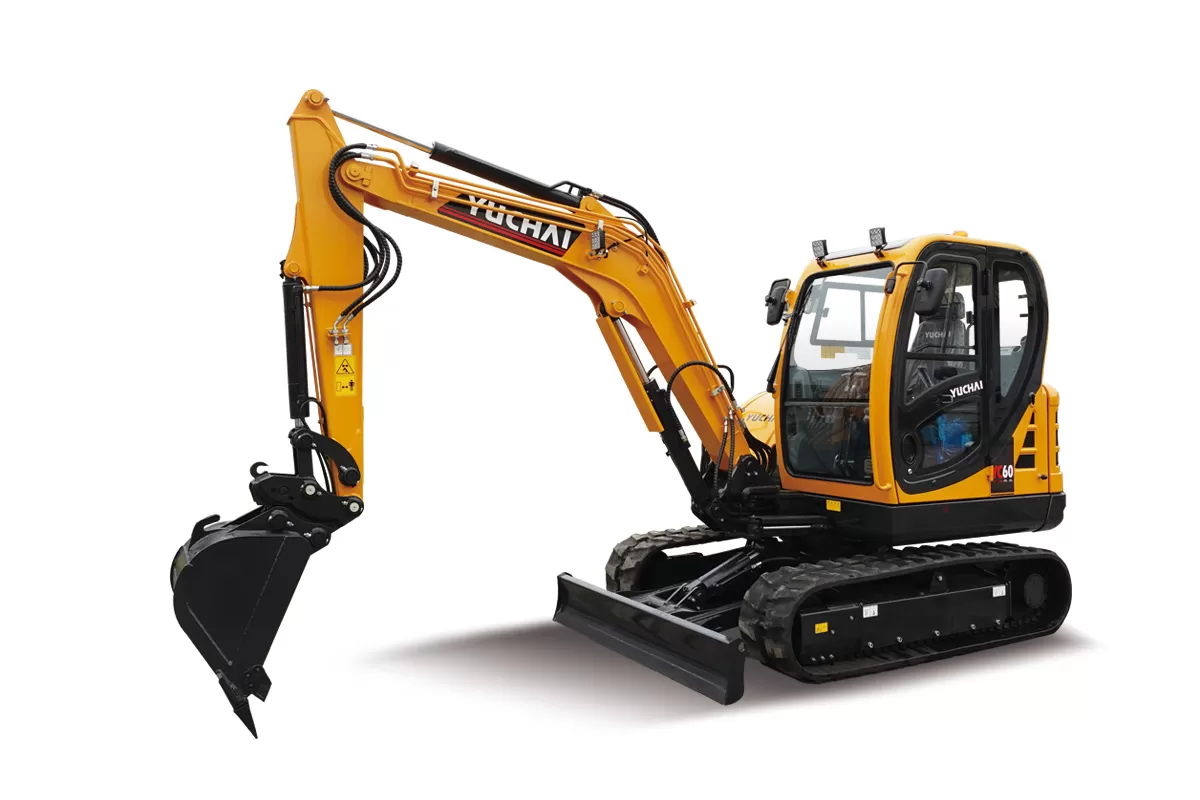

| Compact Excavators | U35, U60, Y60E, YC60 | Approximately 3.8–6 tons | Urban construction, municipal maintenance, utility installation and general excavation |

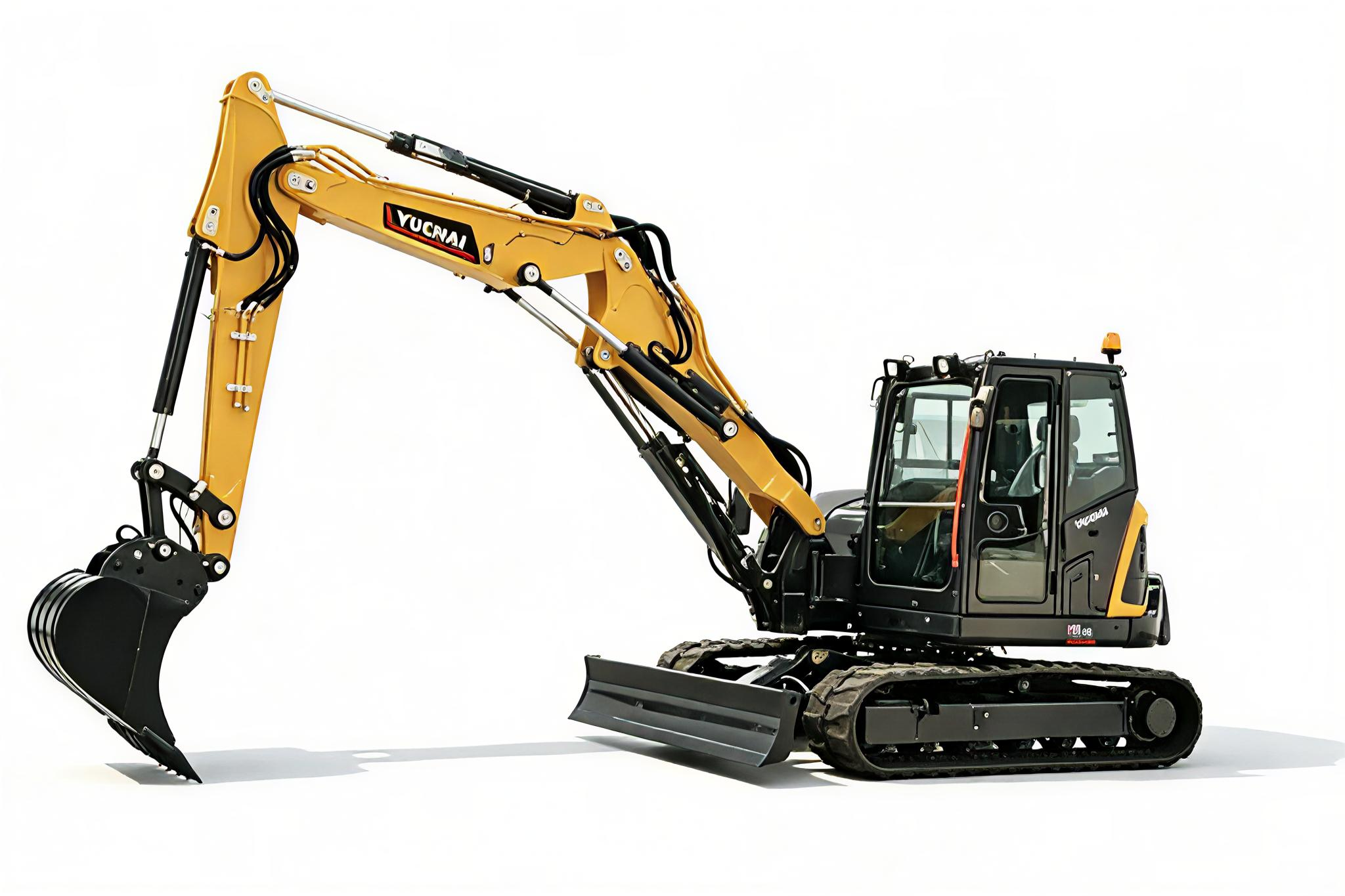

| Small Excavators | YC80, Y90-2PB, YC135 | Approximately 7.8–14.6 tons | Roadwork, commercial construction, trench excavation and infrastructure projects |

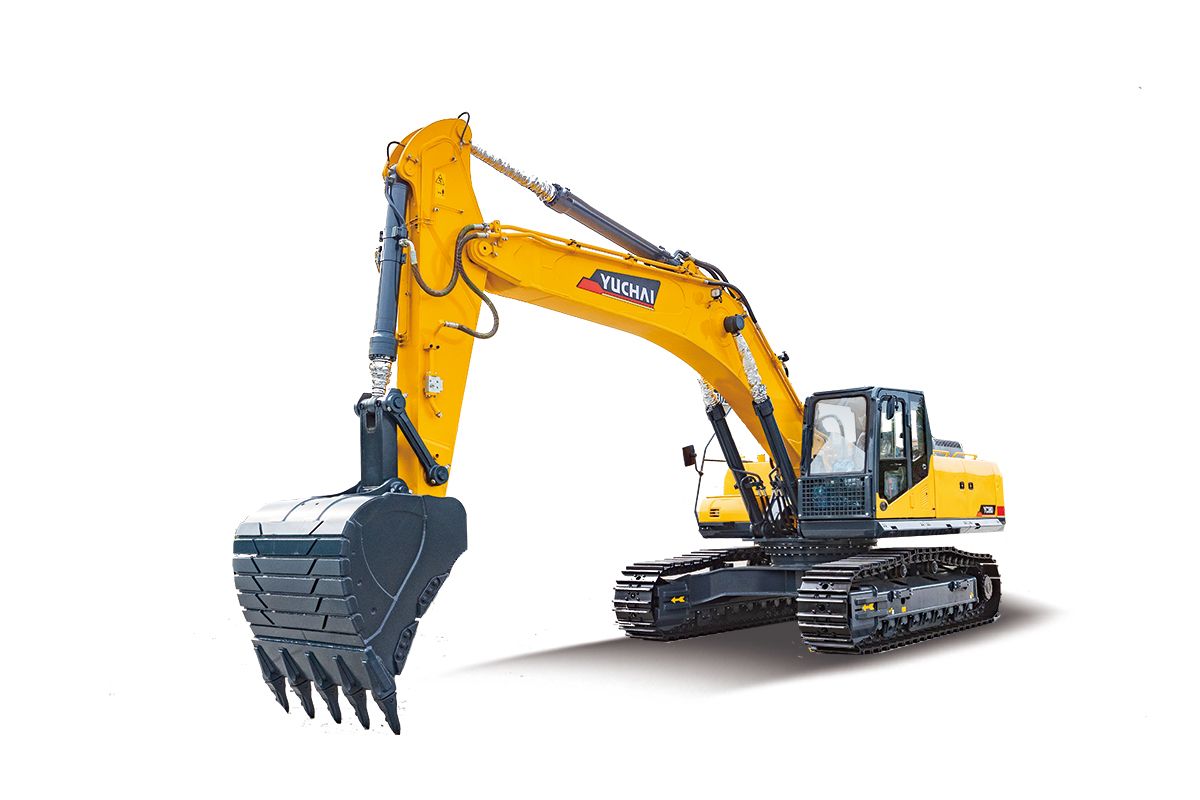

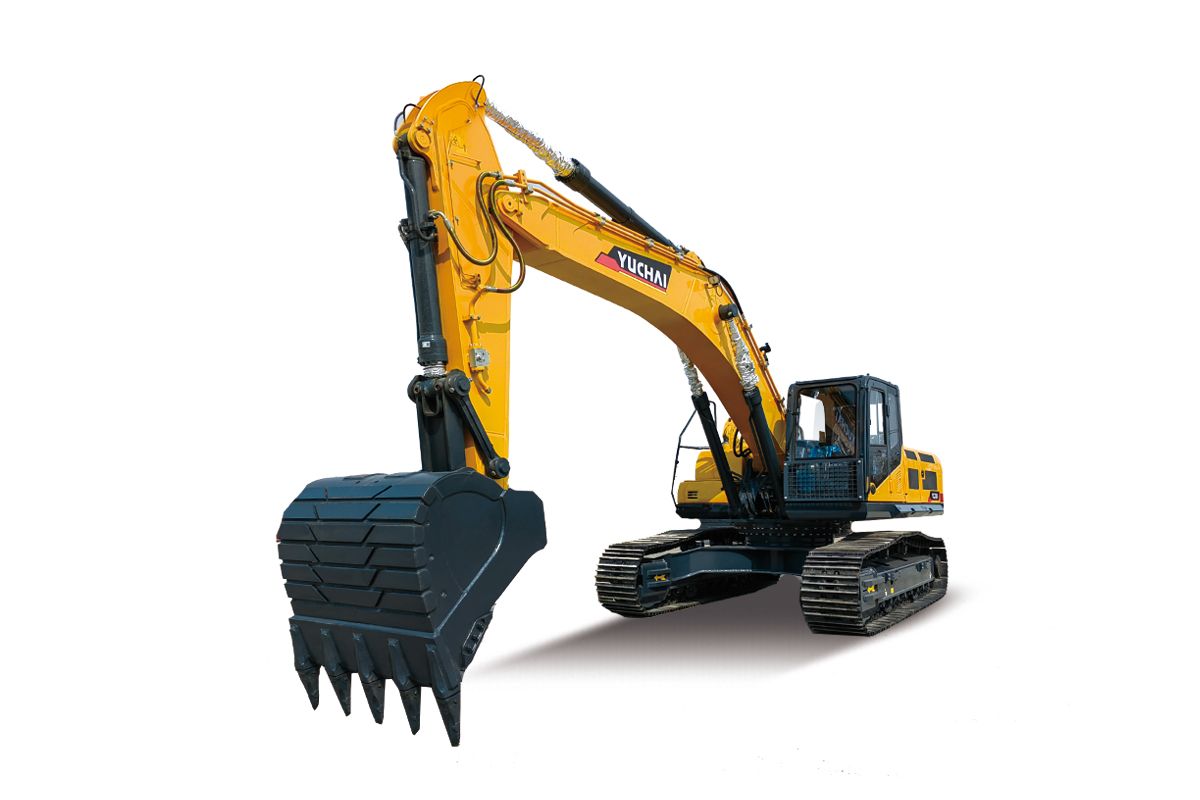

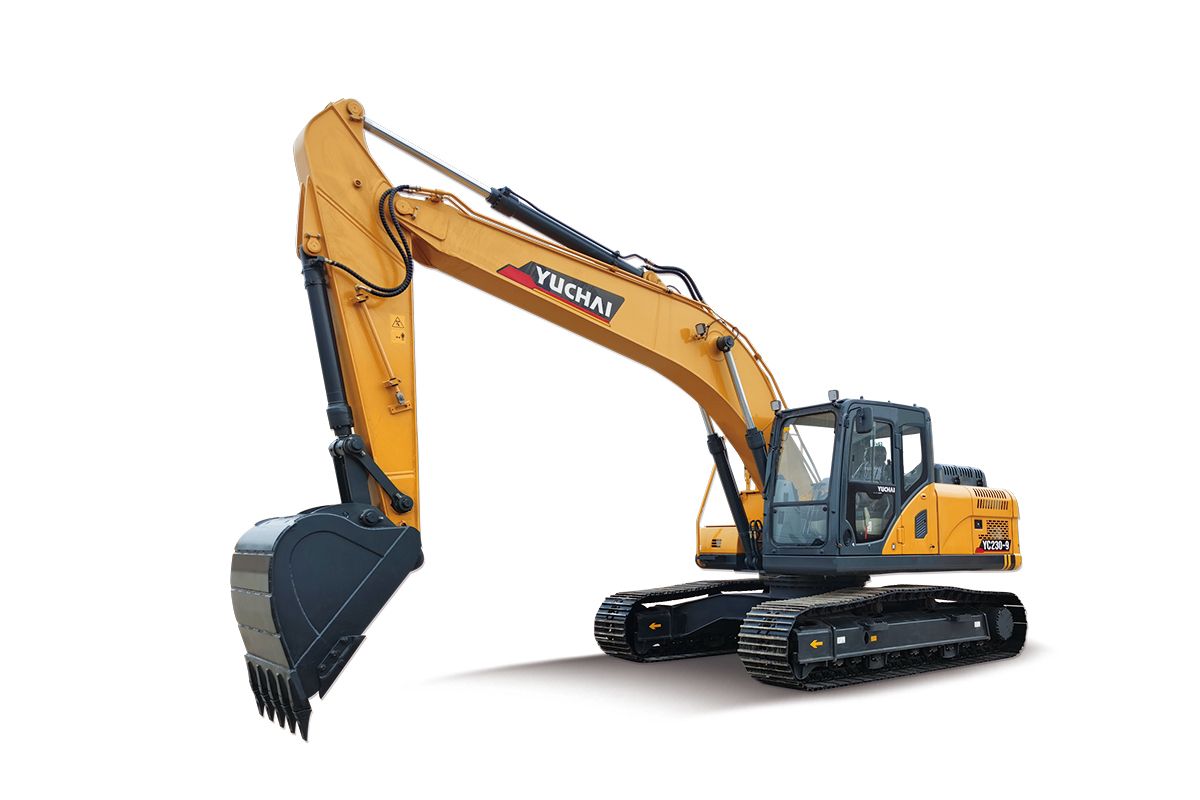

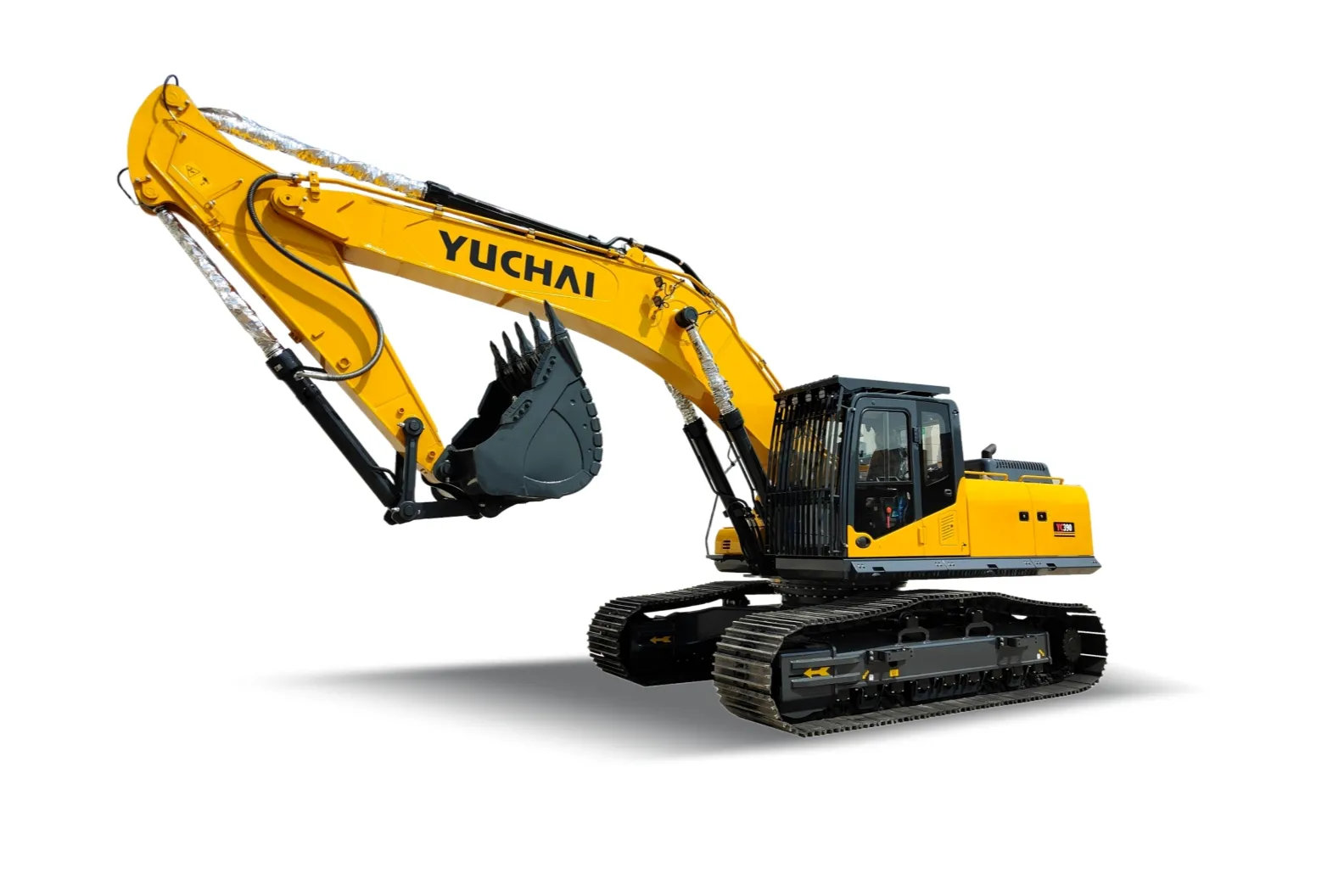

| Large Excavators | YC215, YC230, YC330, YC380, YC390, YC485, YC550 | Approximately 22.3–51 tons | Large earthmoving projects, site preparation, quarry-related work and infrastructure construction |
| Wheeled Excavators | YC90W, YC160W, YC190W, YC210W | Approximately 6.8–21.5 tons | Road maintenance, municipal engineering and construction projects requiring greater mobility on paved surfaces |
Yuchai Excavator Model Comparison
Operating weight and bucket capacity are useful starting points for comparing excavators, but they should be evaluated together with digging depth, hydraulic performance and jobsite access requirements. The following representative Yuchai excavator models illustrate the different machine sizes available.
| Excavator Model | Operating Weight | Bucket Capacity | Power Type | Selection Reference |
|---|---|---|---|---|
| Yuchai U10 | 1,050 kg | 0.02–0.026 m³ | Diesel | Ultra-compact access and small excavation tasks |
| Yuchai U17 | 1,720 kg | 0.05 m³ | Diesel | Residential construction and utility work |
| Yuchai U20 | 2,000 kg | 0.05 m³ | Diesel | General compact excavation |
| Yuchai Y20E | 2,080 kg (Canopy) / 2,200 kg (Cabin) | 0.05 m³ | Battery Electric | Compact jobsites requiring operation without tailpipe emissions |

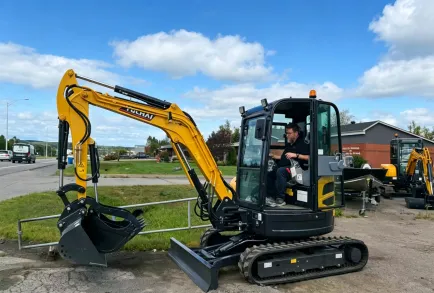

| Yuchai U35 | 3,860 kg | 0.12 m³ | Diesel | Compact excavation where tail-swing clearance matters |

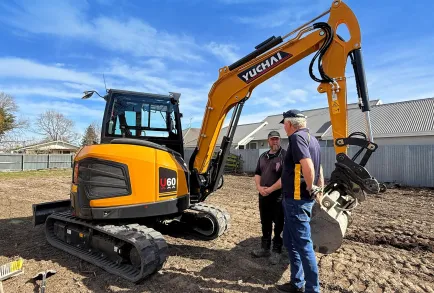

| Yuchai U60 | 5,600 kg | 0.18 m³ | Diesel | Utility installation and medium-scale excavation |
| Yuchai Y60E | 5,950 kg | 0.18 m³ | Battery Electric | Electric excavation requiring greater working capacity than smaller mini excavators |

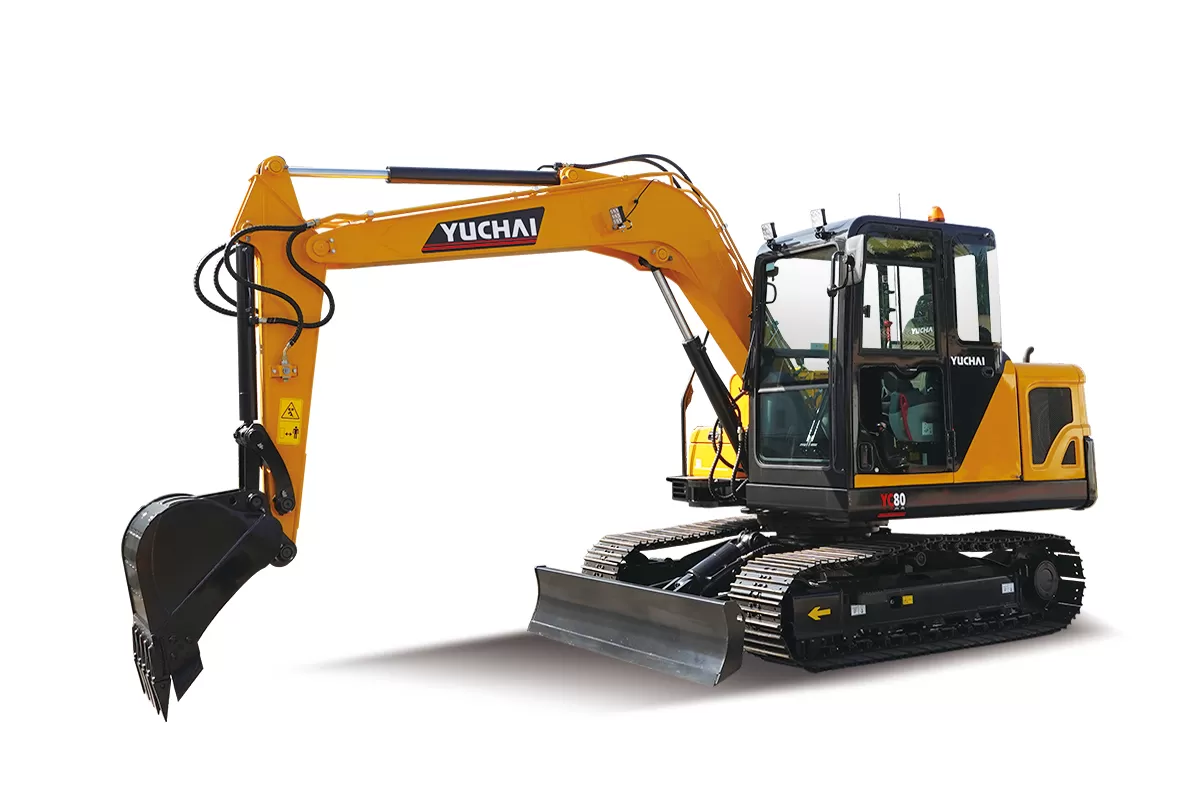

| Yuchai YC80 | 7,800 kg | 0.26 m³ | Diesel | Commercial construction and general earthmoving |

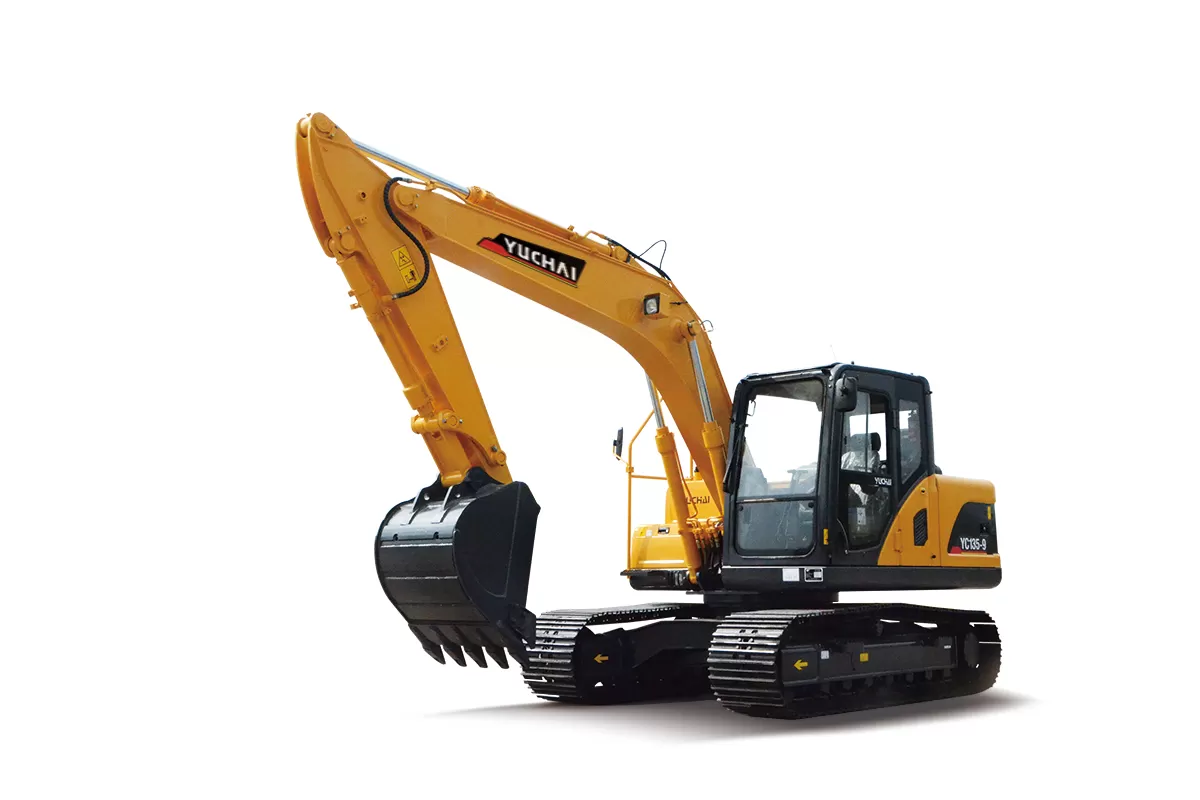

| Yuchai YC135 | 13,800 / 14,580 kg | 0.52 m³ | Diesel | Infrastructure construction and larger excavation projects |

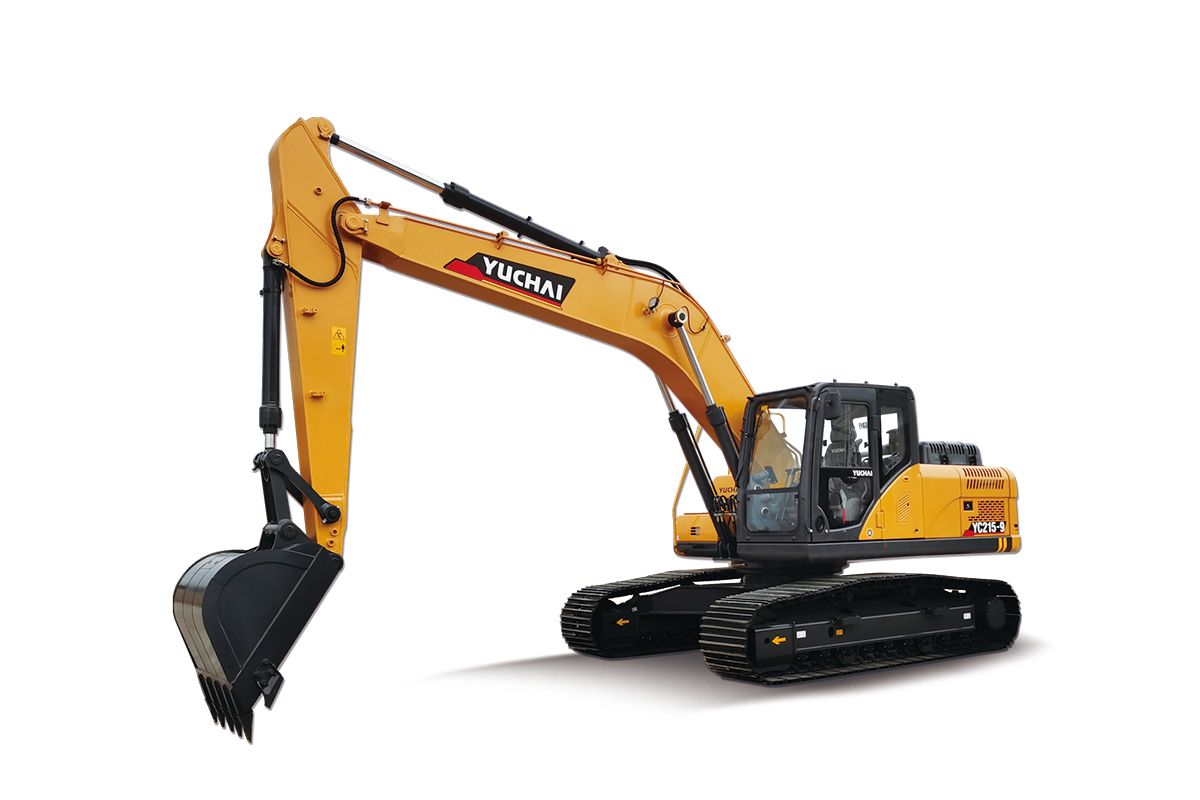

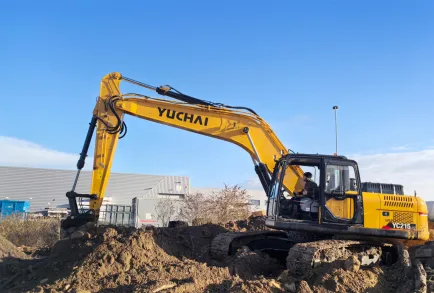

| Yuchai YC215 | 22,300 kg | 0.9–1.1 m³ | Diesel | Large construction and earthmoving projects |

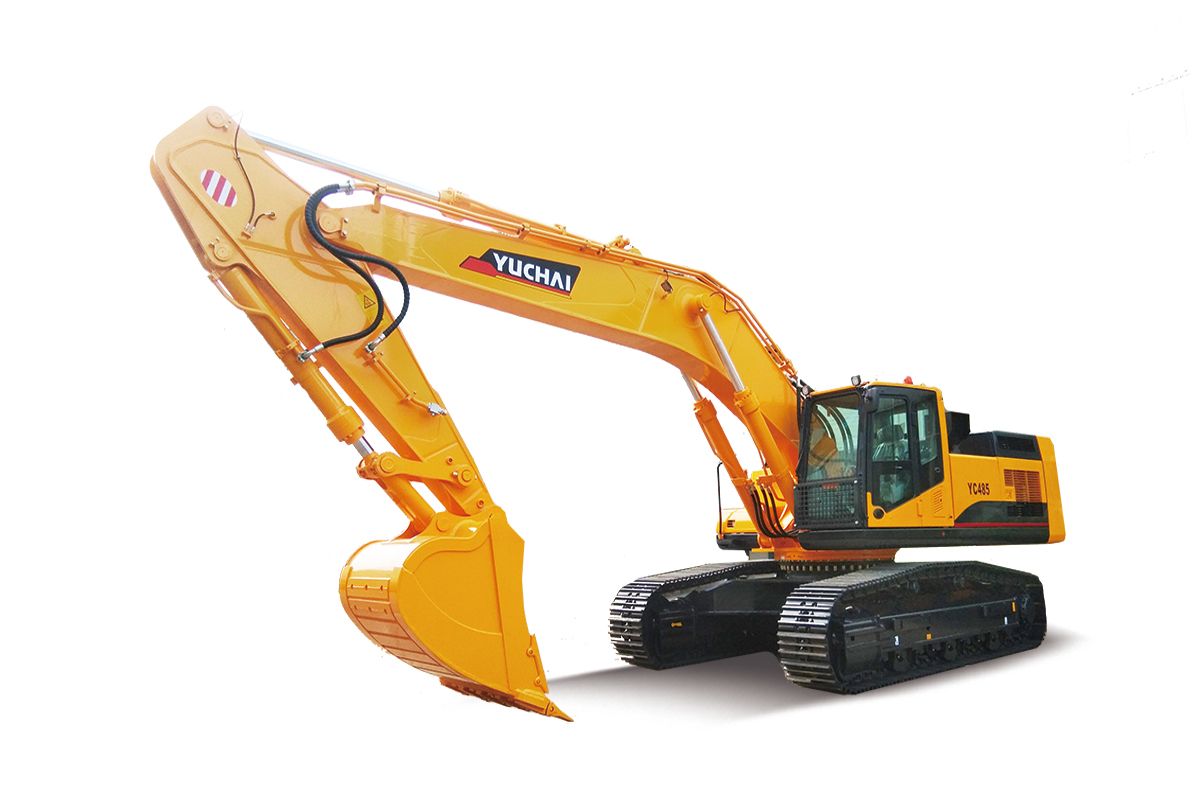

| Yuchai YC485 | 47,000 kg | 2.3 m³ | Diesel | Heavy earthmoving and large-scale excavation |
| Yuchai YC550 | 51,000 kg | 2.8–3.2 m³ | Diesel | High-capacity excavation and bulk earthmoving |
Specifications are based on the currently published Yuchai product information. Weight, bucket capacity and equipment configuration should be confirmed against the final model-specific technical sheet before ordering. In particular, confirm the applicable Y20E configuration and operating weight.
Diesel vs Electric Excavators: Choosing the Right Power System
Yuchai supplies both diesel-powered and battery-electric excavators. The appropriate power system depends on the working environment, daily operating schedule, charging or refueling availability and local equipment requirements.
| Selection Factor | Diesel Excavators | Electric Excavators |
|---|---|---|
| Power Source | Diesel engine | Rechargeable battery and electric drive |
| Tailpipe Emissions During Operation | Produces engine exhaust | No tailpipe emissions |
| Energy Supply | Requires diesel refueling | Requires suitable electrical charging infrastructure |
| Daily Operation Planning | Depends on fuel supply and refueling arrangements | Depends on battery capacity, workload and charging schedule |
| Maintenance Considerations | Engine servicing, filters, hydraulic system and undercarriage maintenance | Electric-drive inspections, battery-system requirements, hydraulic system and undercarriage maintenance |
| Typical Purchasing Considerations | Remote jobsites, refueling flexibility and operating requirements | Noise-sensitive projects, restricted exhaust conditions and available charging facilities |
Yuchai Battery-Electric Excavator Models
For customers evaluating electric excavators, Yuchai offers the Y20E and Y60E models in different operating-weight classes. Their battery capacities and working specifications should be assessed against the actual jobsite requirements.
| Model | Operating Weight | Battery Capacity | Maximum Digging Depth | Product Details |
|---|---|---|---|---|
| Yuchai Y20E | 2,080 / 2,200 kg | 33.38 kWh | 2,310 mm | Y20E Specifications |
| Yuchai Y60E | 5,950 kg | 105 kWh | 3,635 mm | Y60E Specifications |
When requesting an electric excavator quotation, specify the required daily working hours, typical digging intensity, charging power supply and operating environment.
